A, use

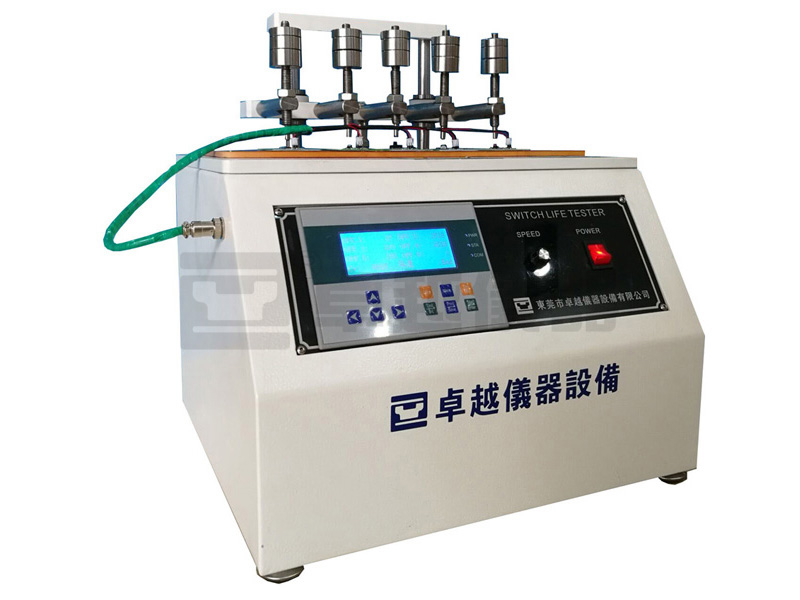

The machine is suitable for testing the fatigue properties of key buttons such as key switches, key switches, thin film switches, silicon switches and micro switches.It can simulate the quality and reliability of products after a certain number of switches in actual work, so as to improve product quality and provide reliable basis for product development.
The equipment is designed in accordance with the relevant provisions of gb16915.1-2003, GB15092,1-2003, iec60699-1, iec61058-1 and other standards
Ii. Product specifications
Test station: 5 stations
Test speed: 0 ~ 80 times /min(adjustable)
Load: 160g,250g,310g(of which 160g is the basic load), and load accumulation method
Impact stroke: 10mm
Impact head movement: 0-50mm
Keys: Φ 6, R1
Counter: 0-999999lcd
Power supply: AC220V,2A
Weight: about 35 kg
